Feel every corner. Own every axis.

The hidden cost of “just wiring it up”

Most builders start with good intentions: terminal blocks, jumper wires, zip ties, maybe a perfboard or two. Then reality sets in.

• Long wire runs become antennas.
• High motor currents inject noise into logic lines.
• Grounds multiply and loop.
• Crosstalk creeps into feedback signals.
• One intermittent fault can take hours—or days—to diagnose.

The simulator still mostly works… until it doesn’t. That is when the gremlins show up.

Why wiring becomes the weak link

Motion simulators are demanding environments for electronics:

• High switching motor currents and fast PWM edges
• Analog and digital signals sharing a compact space
• Sensitive position feedback prone to noise
• USB and serial communications near power wiring

Loose wiring, inconsistent grounding and improvised layouts can reduce reliability, increase interference and make faults harder to find.

A board-level approach to reliability

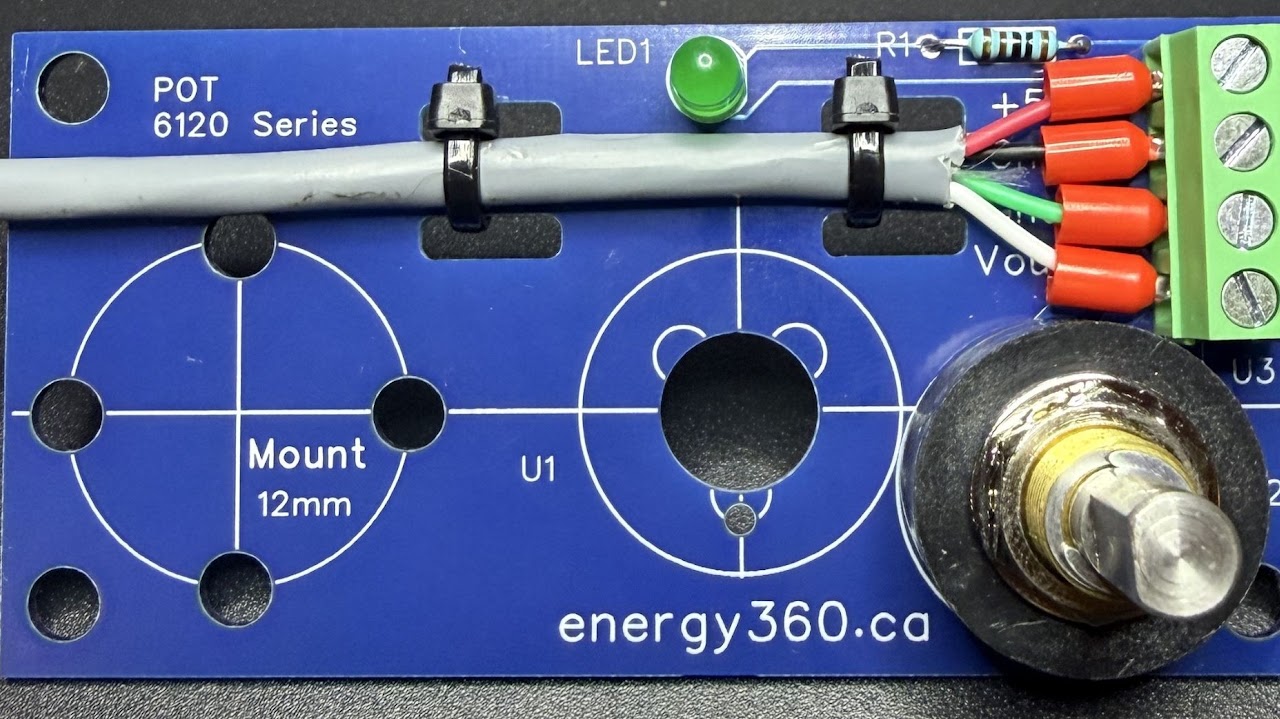

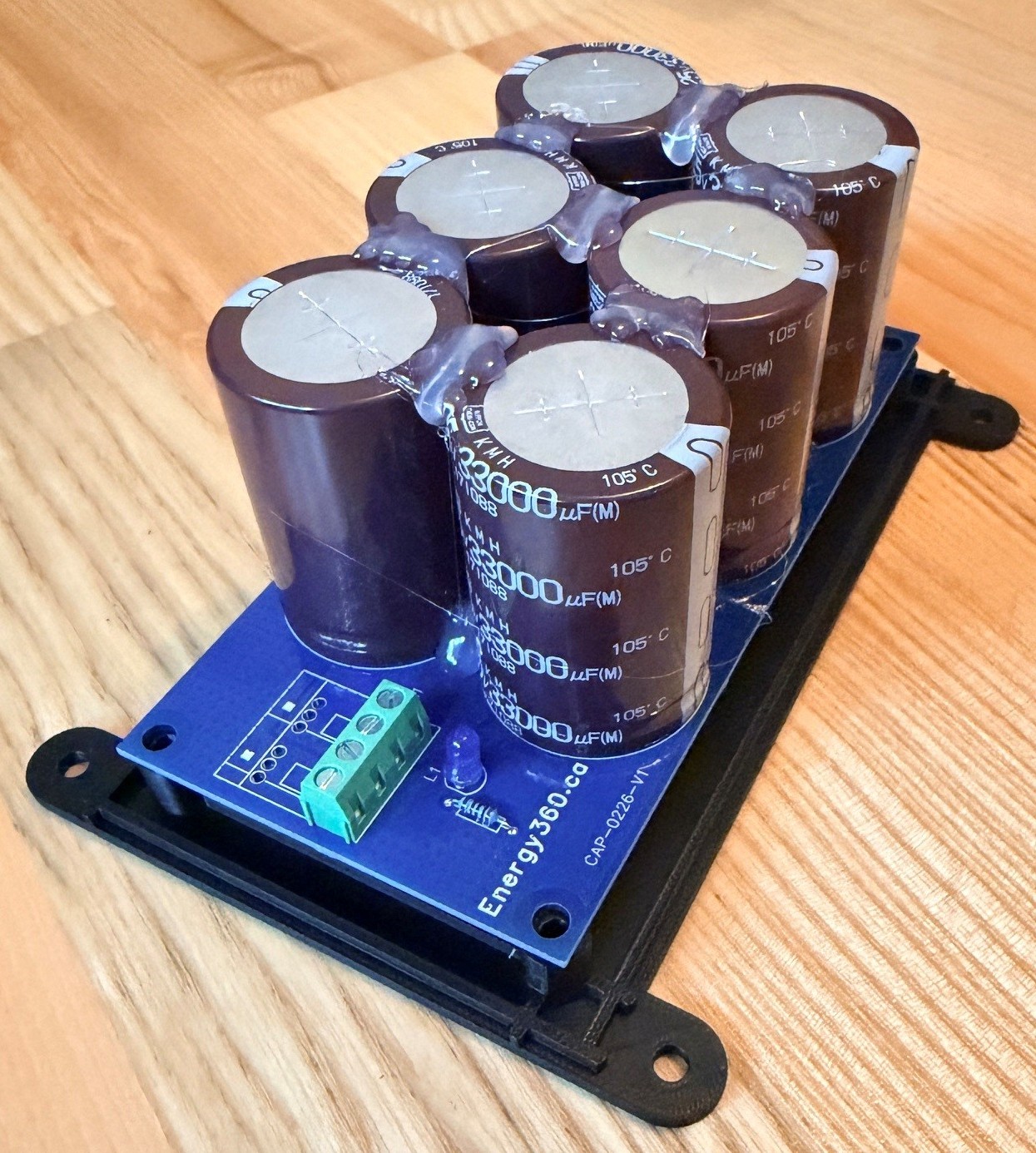

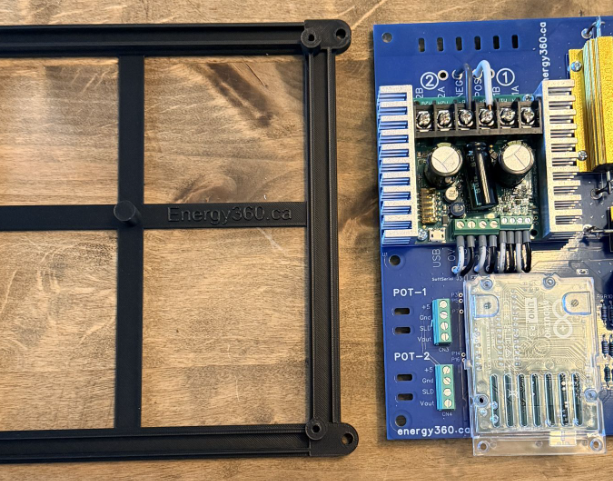

Energy360 designed purpose-built circuit boards for race motion simulators. These are not generic breakouts or hobby-grade compromises. They address the connection and troubleshooting problems that appear in real rigs, from compact 2DOF builds to more complex 4DOF and 6DOF projects.

• Controlled grounding and return paths
• Reduced EMI and crosstalk
• Separation of high-current power and sensitive signals
• Repeatable, documented wiring paths
• Fewer error-prone hand-wired connections
• Connections that make troubleshooting clearer

The goal: a cleaner, quieter system that is easier to maintain.

Fewer wires. Fewer errors. Faster builds.

Dedicated PCBs bring shorter signal paths, consistent connector orientation, trace widths designed for their intended circuits, strain relief at connectors, and clear separation of power, logic and feedback.

When a fault does appear, a documented board layout gives you a sensible place to start diagnosing it instead of tracing an improvised wiring bundle.

Built for builders who want it done right

You can wire a simulator point-to-point. If you would rather spend less time chasing electrical ghosts and probing wiring bundles, build a system you can come back to months or years later and still understand. The aim is a rig that:

• Starts consistently
• Stays stable under load
• Behaves predictably
• Remains serviceable as it evolves

Do it right the first time.
