Power Interface.
Connect a compatible Dell L1100A server supply to your race sim through a purpose-built edge connector board. Choose the board and supply configuration that fits your 12V or 24V system.

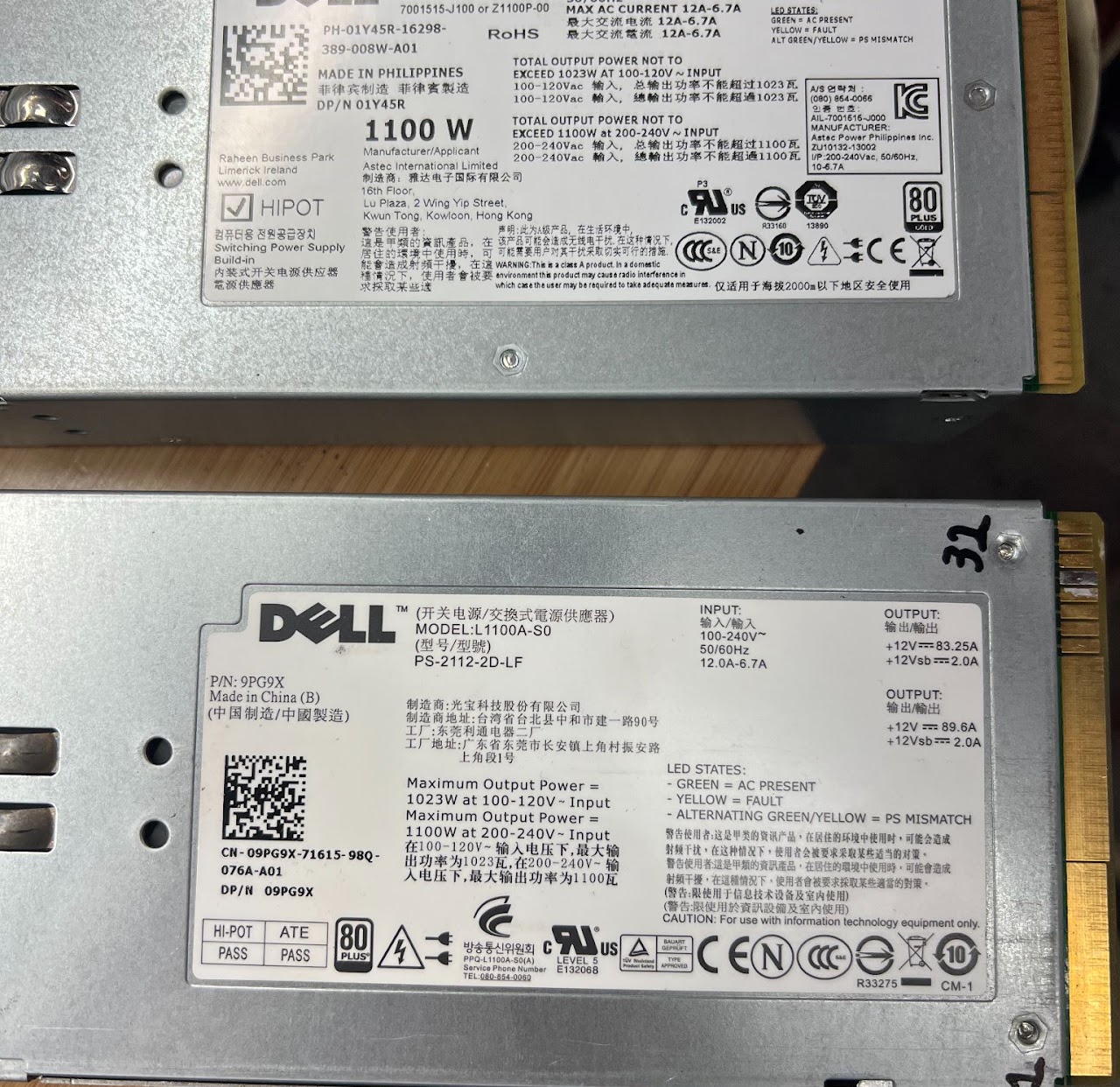

- 01Y45R
- OTCVRR
- 9PGX9X
- TCVRR
- F6V5T
- Plus many more
A board for the L1100A.

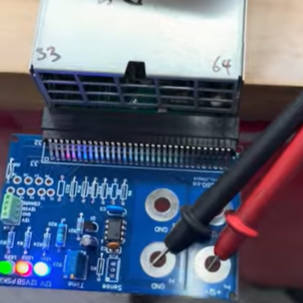

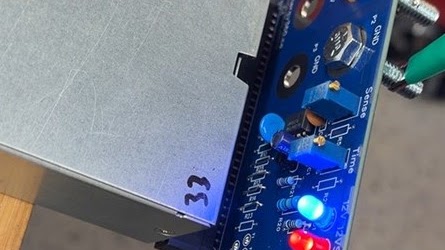

The Dell L1100A is an 1100W server power supply with a 12V DC output. Its factory output is an edge connector. Energy360's interface board provides a mating connector, power posts and control connections.
The board avoids soldering power cables directly to the supply's output contacts and gives the installation a repeatable layout.

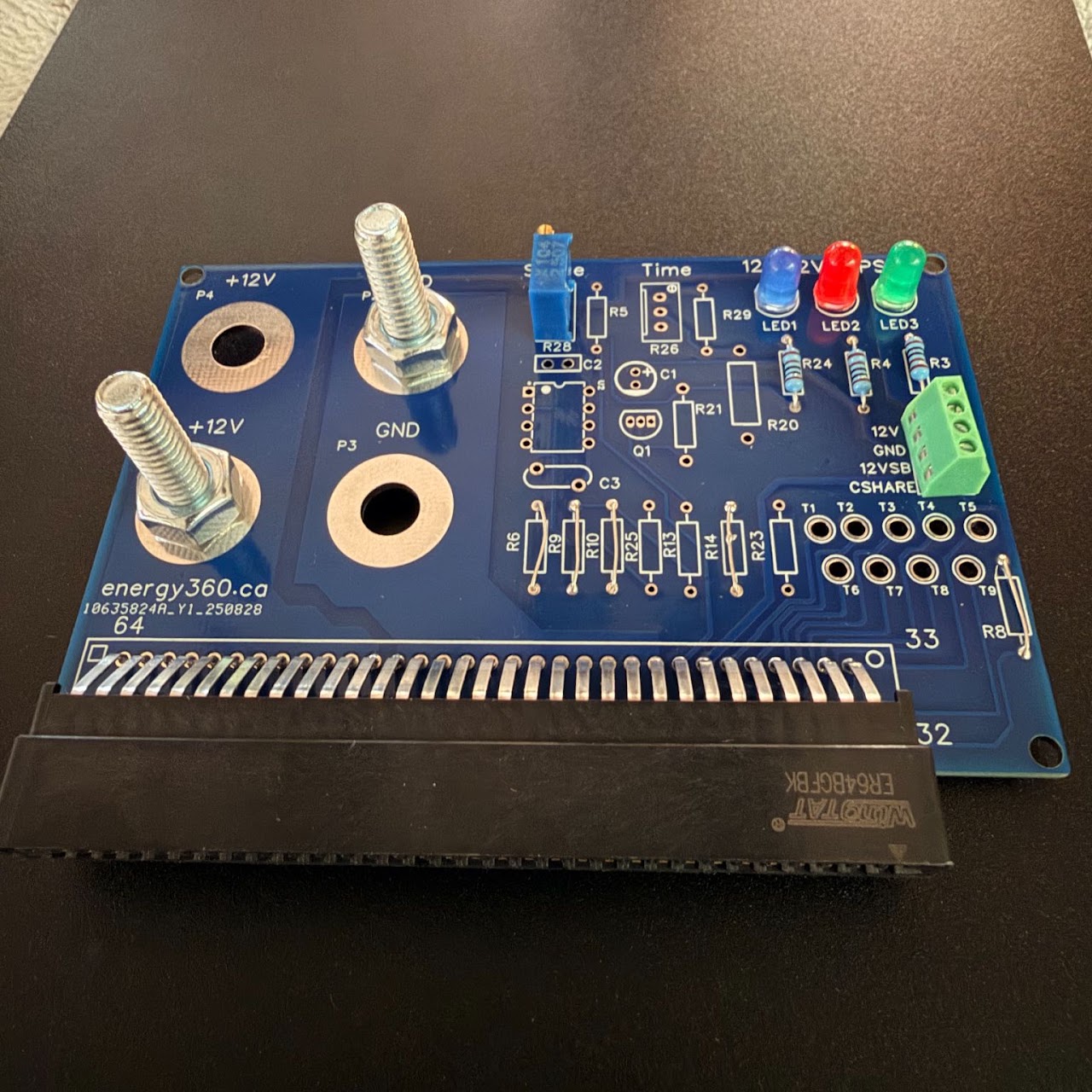

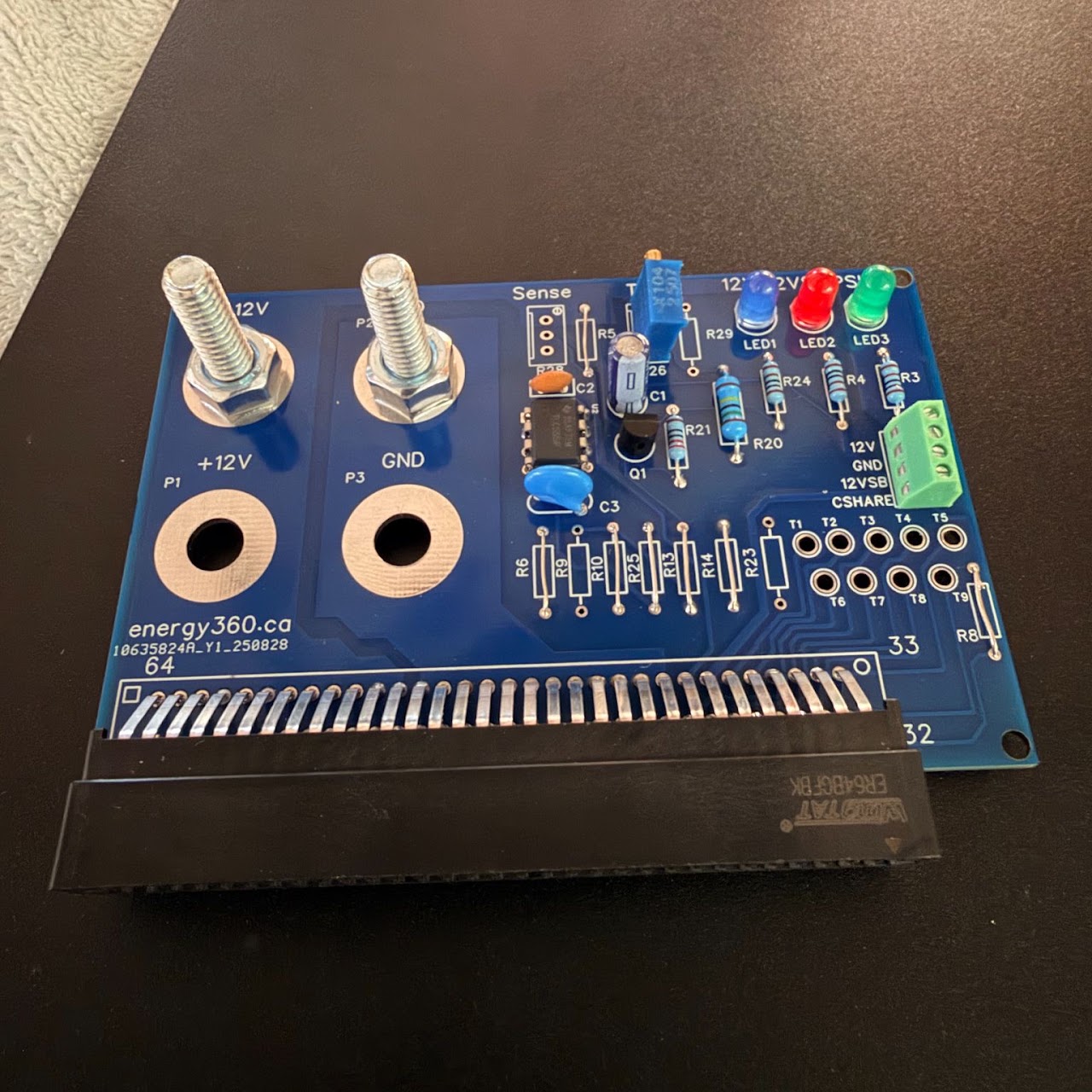

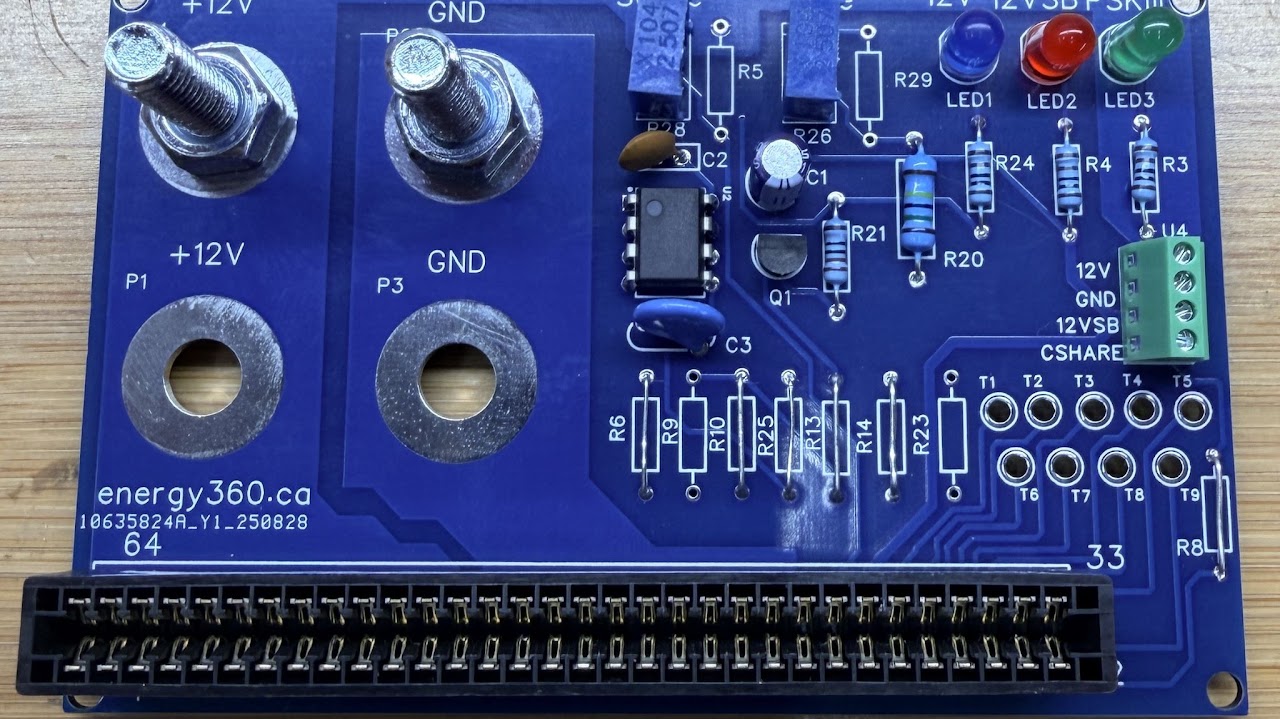

- Factory-style edge connector interface
- Up to four ¼-inch power posts: two 12V and two ground

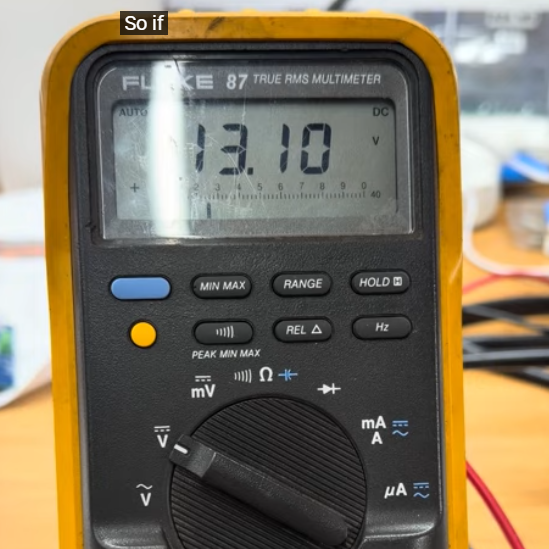

- Adjustable output voltages from 12.2V to 13.4V
- Delayed-start control option
- Current-share connection for compatible supplies
- Straight and 90-degree connector layouts
- Connect two power supplies in series to provide 24V DC
12V and 24V configurations.
One compatible L1100A provides a 12V system. A 24V system can use two compatible supplies in series, with the correct isolation, protection and board configuration. Energy360 designs can be ordered for 12V and 24V configuration options. Confirm your complete power layout with Energy360 before ordering.
Fit the available space.
Straight and 90-degree board arrangements let you route the output and control connections to suit the power-supply mount and enclosure.
Double up the supplies in parallel for up to 2,200 watts and approximately 180 amps at 12V DC. Or configure them in series for up to 2,200 watts and approximately 90 amps at 24V DC. Energy360 has specialized mounting hardware that lets you stack the supplies on top of each other.
Built for demanding loads.
The L1100A combines high-current output with built-in control and protection. These supplies are widely available as refurbished or surplus hardware, making them a practical choice for motion builds.
Energy360's edge connector board brings that power into the rig through dedicated terminals, while avoiding stress on the supply's output pads from cables soldered directly to them.
- Up to 90A at 12V DC from one compatible supply
- Built-in firmware protection and control
- Current sharing when compatible units run in parallel
- Series configuration for a 24V system
- Adjustable output voltage on supported models
- Optional delayed start for staged power-up
Videos and details.

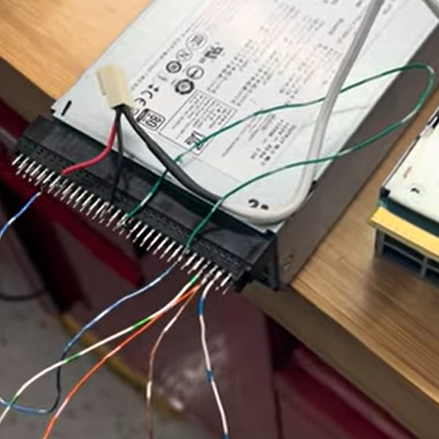

Watch demonstrations of the control lines, supply models, interface boards and voltage adjustment.
Order your power interface.
Include the power-supply model, desired 12V or 24V configuration, and the space available for the board and mount.
