Energy360 electronics / Motor control
Main Circuit Board.
Keep the electrical heart of your motion simulator neat and tidy. One purpose-built board organizes the motor driver, controller, position feedback, power and safety connections.
A home for the connections
Neat wiring.
Clear connections.
The board mounts a Sabertooth 2x32 with ventilation openings and an Arduino Uno R3 without a separate connector shield. Labeled terminals bring the position sensors, power, wind control and emergency stop connections together in one place.
Connector strain relief helps keep those connections serviceable as the simulator moves.
- Sabertooth 2x32 mounting and ventilation
- Arduino Uno R3 mounting; no connector shield needed

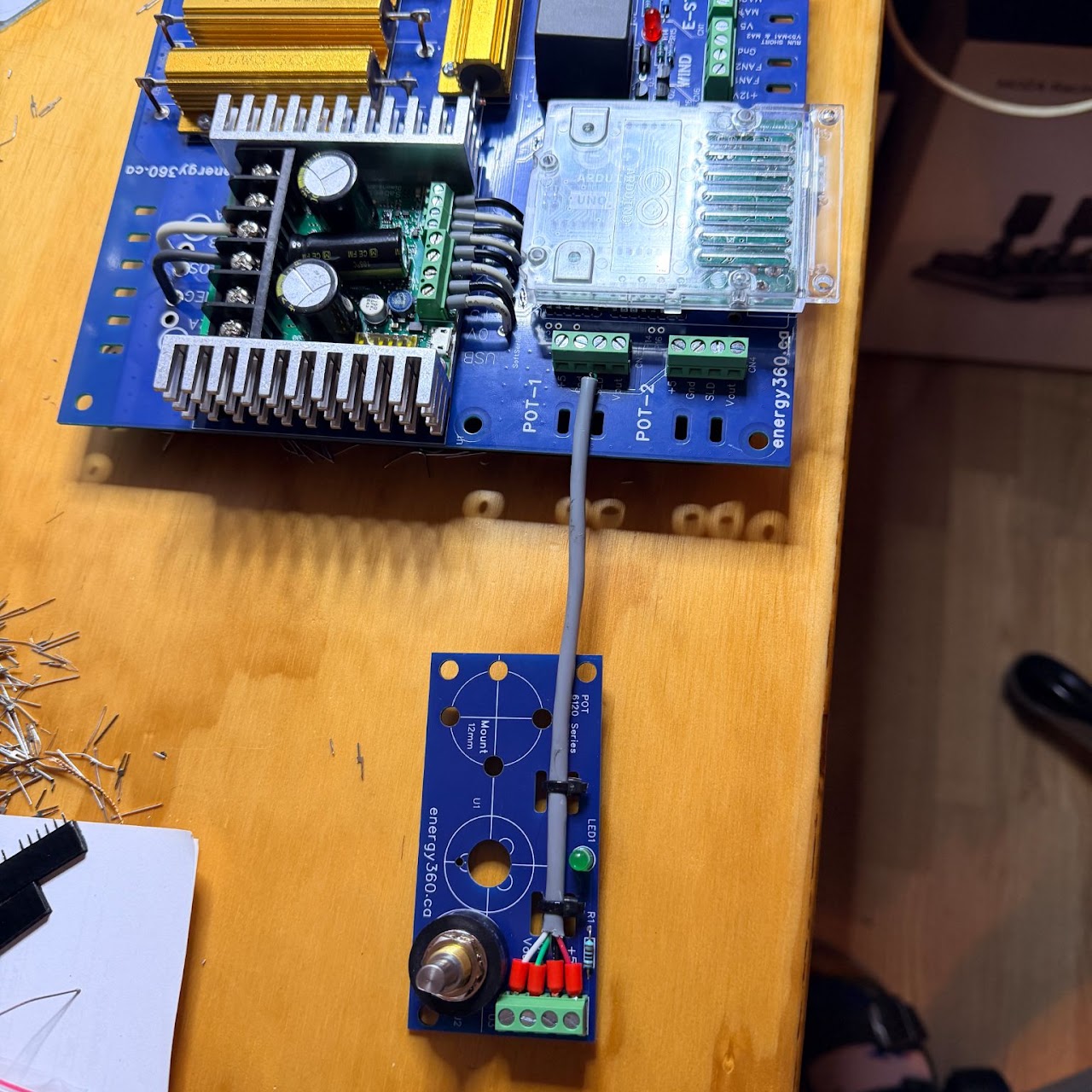

- POT-1 and POT-2 position sensor connections for two motors

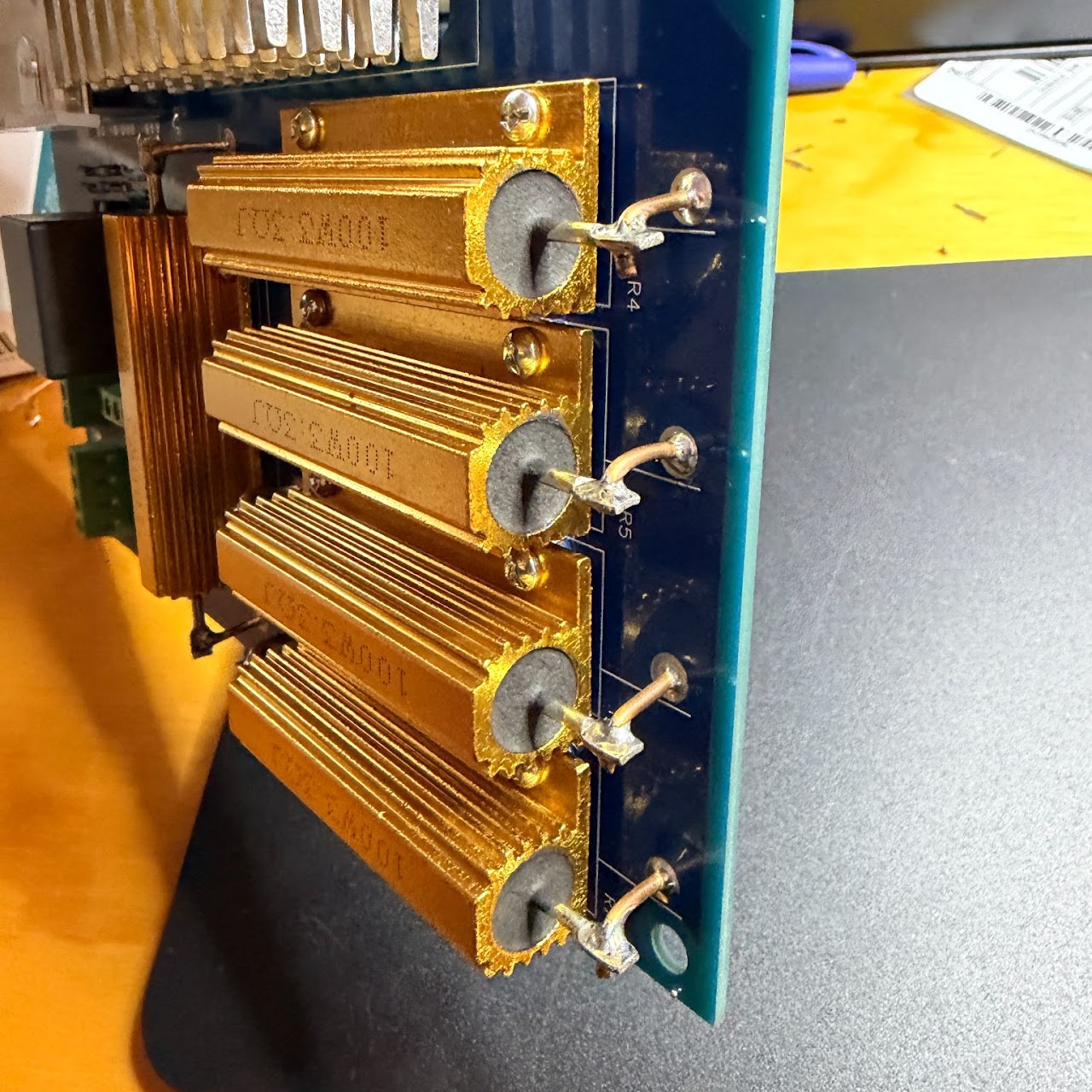

- Power resistor connections for regenerative current
- Capacitor bank controller with controlled startup

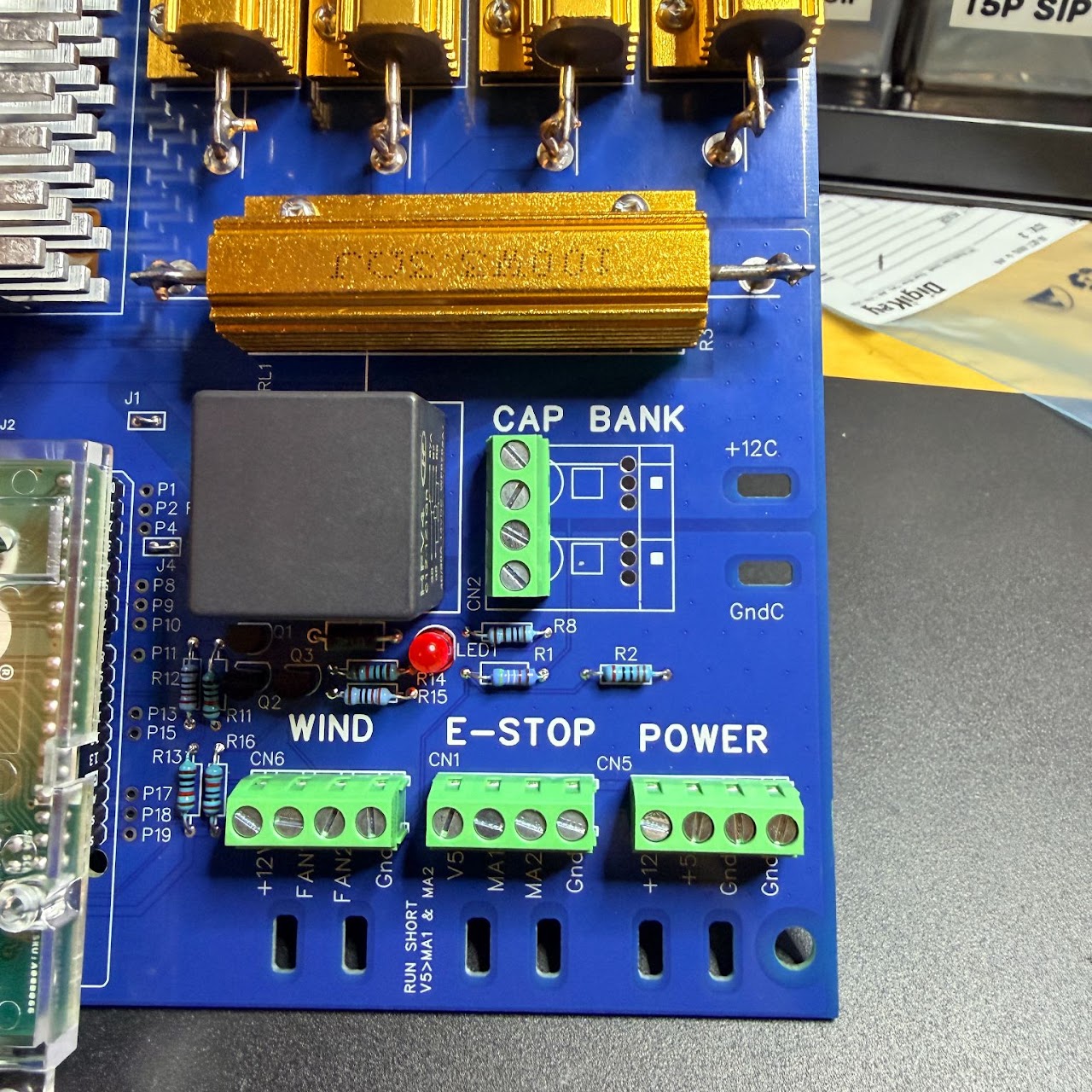

- Optional left and right PWM fan control for wind simulation
- Emergency stop connection to shut down the motors
- Auxiliary +12V or +24V connections; cable strain relief
A closer look
Built around the details.
Ready to build?
Order the main board.
Use the Energy360 order form to request a board and tell us your planned voltage, simulator layout and options.
